4ch H.265 Wireless IP Kit K8304-PA3050-W

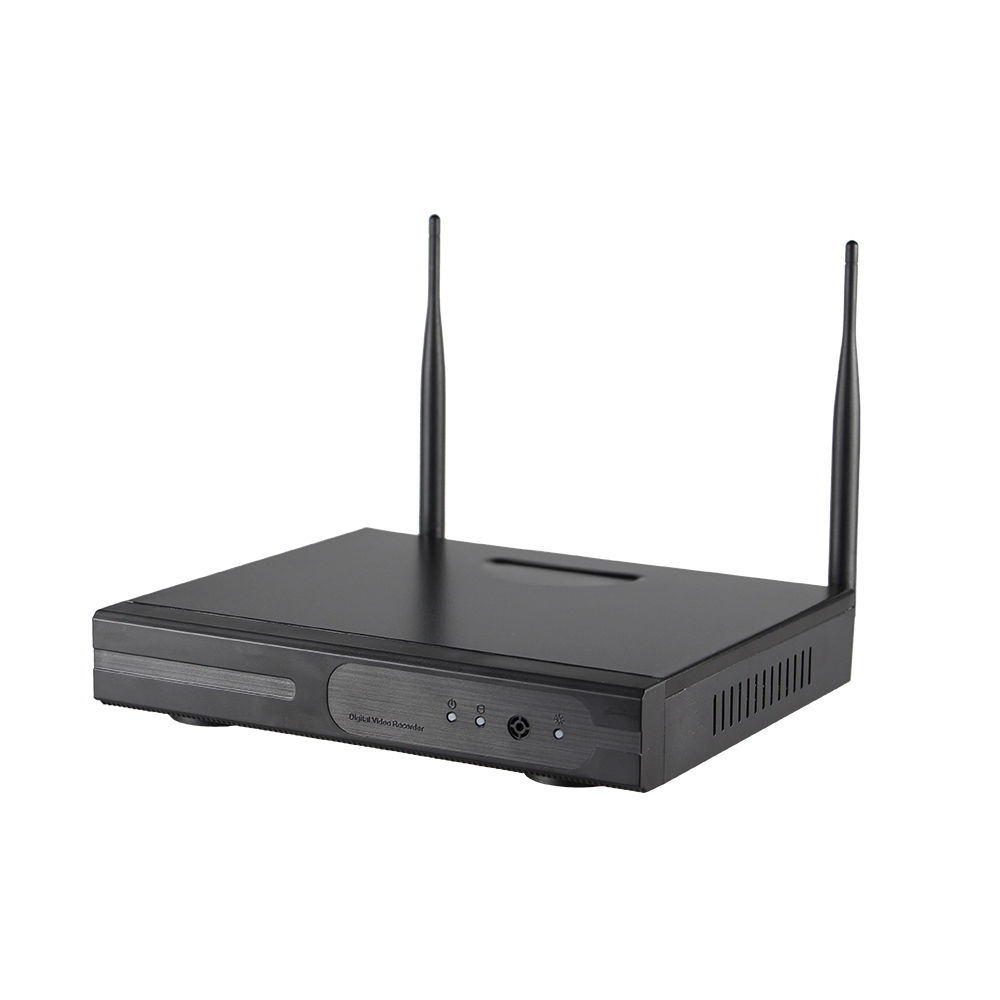

wireless NVR



item

K8304H-W



processore

professional industrial processor



operation system

embed linux operation system



video audio input

network video input

4 channel



video output

HDMI output

1channelresolution1024x768, 1280x1024,1366x768, 1440x900,1920x1080p



VGA output

1channel resolution1024x768, 1280x1024,1366x768, 1440x900,1920x1080p



video compression

standard  H.264H264+H.265 H265+



video encoding specification

recording resolution

5MP/4MP/1080P/960P/720P



playback

1 channel



video manage

recording/capture mode

manual recordingtime recording motion detection recordingalarm recording



playback mode

instant playbackgeneral playbackevent playback



backup mode

general backup



HDD drive

type

1 SATA connector



max capacity

every sata MAX 6TB



eternal connector

network port

one RJ45 10M/100M self adaptive ethernet port
2  antenna



USB port

1 USB 2.0(2 USB port optional)



audio port

13.5 inch headphone jack (optional



network management

network protocol

UPnPplug and play)、SMTPemail service)、PPPoEdial up networking)、DHCP etc.




Others

power supply

DC 12V 2A



power consumptionwithout HDD

5W



working temperature

-10--55



working humidity

10--90



size

258×210×42mm



weight no HDD

1Kg

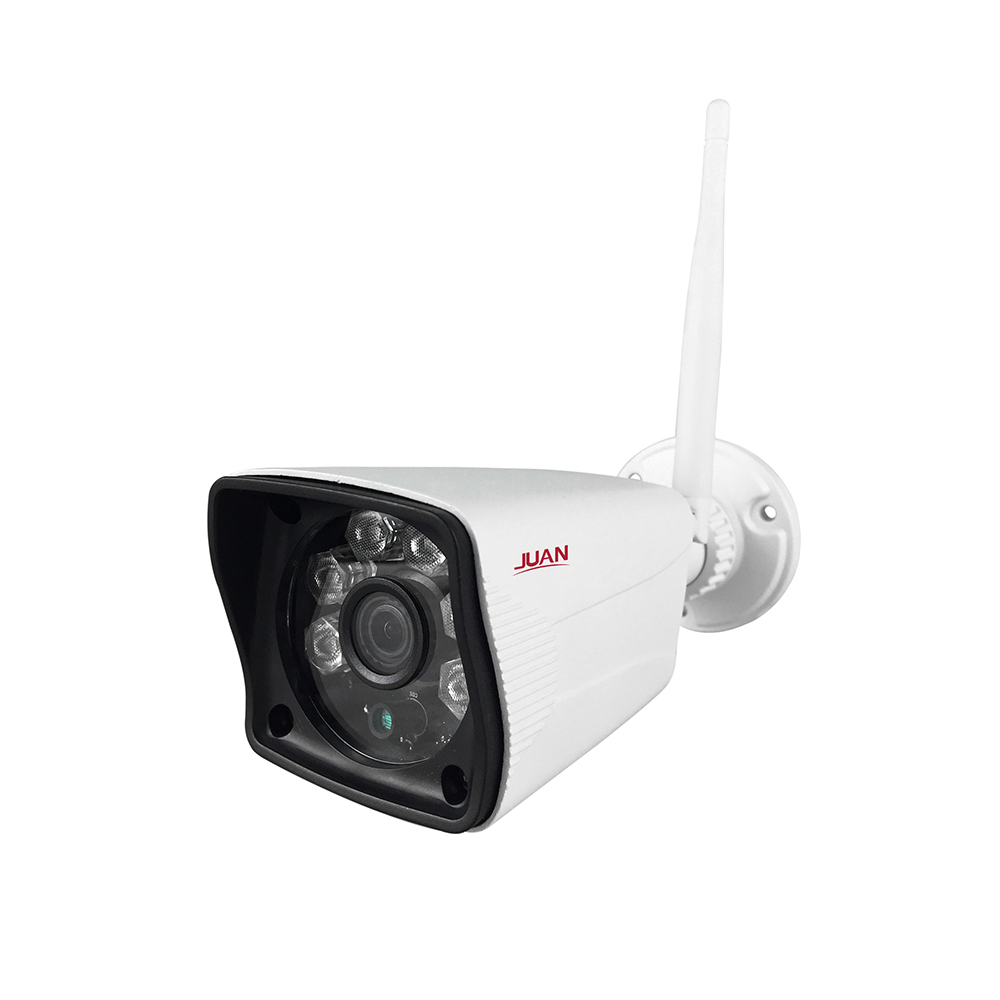

wireless IPC



MODEL NUMBER

PA3050H-W



Mega Pixel

500W



processor

professional industrial processor



operation system

embed linux operation system



image sensor

1/3 Progressive Scan Sensor



S/N Ratio

> 39.1 dB



video compression

standard  H.265, H.264H265+



resolution

2592 x 1944 4: 3



Min illumination

Color: 0.01 Lux





B/W: 0.001 Lux



lens

4mm



OSD

Date Time & Title



white balance

Auto



Day & Night

Auto / Color / BW



3D-DNR

Auto



Mirror/Flip

On / Off



privacy masking

4 Zone Selectable



stream

dual stream

2592x1944@15fps or below

720x576@15fps or below



anti-lighting grade

Standard IEC61000-4-5



power input

DC12V-1A



power cocumption

6W



connector

reser button/ WIFI 802.11b/g/n



working humidity/ temperature

-10 to +50 / 30% to 80% RH



storage temperature / humidity

-20 to +60 / 20% to 90% RH



size

66*180mm



14ch 720P/960P/1080P/3M/4M/5Mwireless network vedio recorder

2built in professional wifi moduel,strong singaland anti-interference ability

3no need match codeplug-play

4wired&wireless mix use,apply in different sense

5P2P essetquick long-distance connectsmoothly image

6support muliti alarm trigger(vedio lost/motion detection)alarm output(sound/E-Mail)

7support Android/Appleor tablet PClong distanceLAN*NETlogin and control
