8ch H.265 Wireless IP Kit K8208-PA3021-W

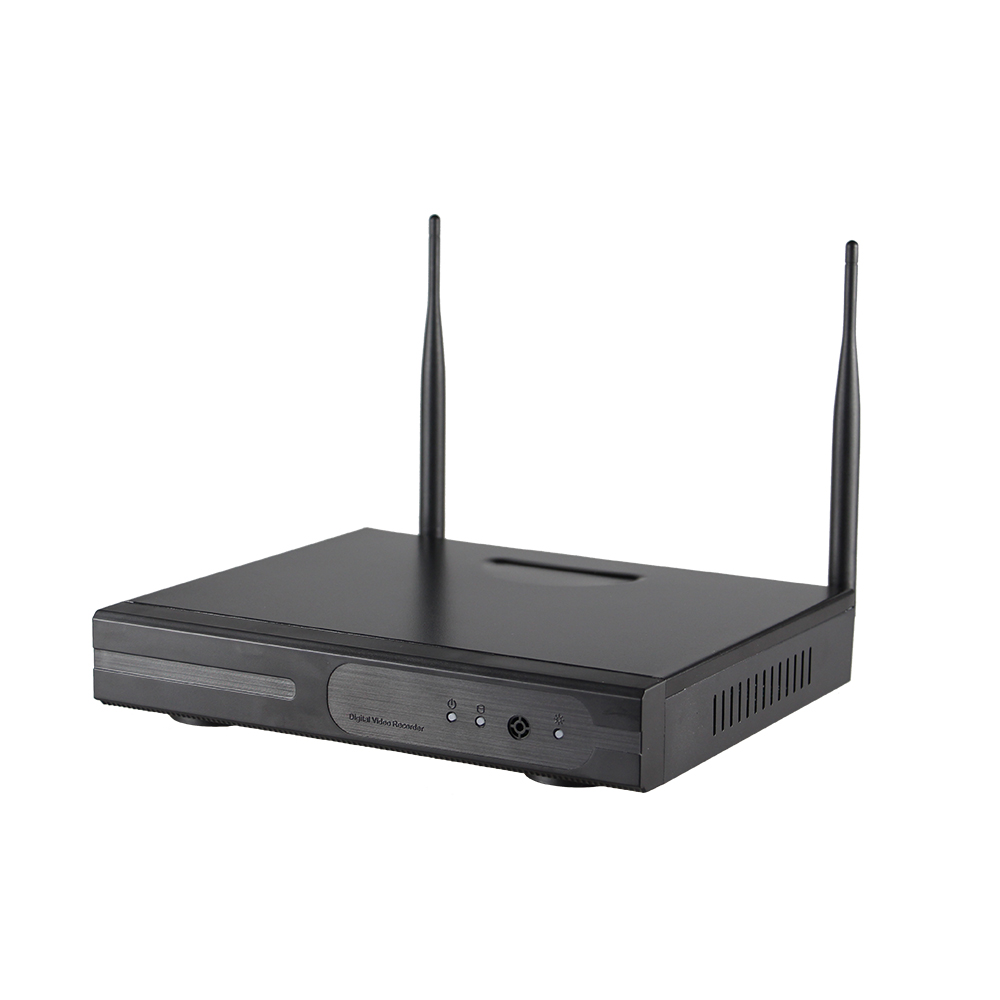

wireless NVR



item

K8208H-W



processore

professional industrial processor



operation system

embed linux operation system



video audio input

network video input

8 channel



video output

HDMI output

1channelresolution1024x768, 1280x1024,1366x768, 1440x900,1920x1080p



VGA output

1channel resolution1024x768, 1280x1024,1366x768, 1440x900,1920x1080p



video compression

standard  H.265, H.264H265+



video encoding specification

recording resolution

720P/960P/1080P



playback

1channel



video manage

recording/capture mode

manual recordingtime recording motion detection recordingalarm recording



playback mode

instant playbackgeneral playbackevent playback



backup mode

general backup



HDD drive

type

1 SATA connector



max capacity

every sata MAX 6TB



eternal connector

network port

one RJ45 10M/100M self adaptive ethernet port
2  antenna



USB port

1 USB 2.0(2 USB port optional)



audio port

13.5 inch headphone jack (optional



network management

network protocol

IEEE 802.11Wi-Fi UPnPplug and play)、SMTPemail service)、PPPoEdial up networking)、DHCP etc.




Others

power supply

DC 12V 2A



power consumptionwithout HDD

5W



working temperature

-10--55



working humidity

10--90



size

258×210×42mm



weight no HDD

1Kg

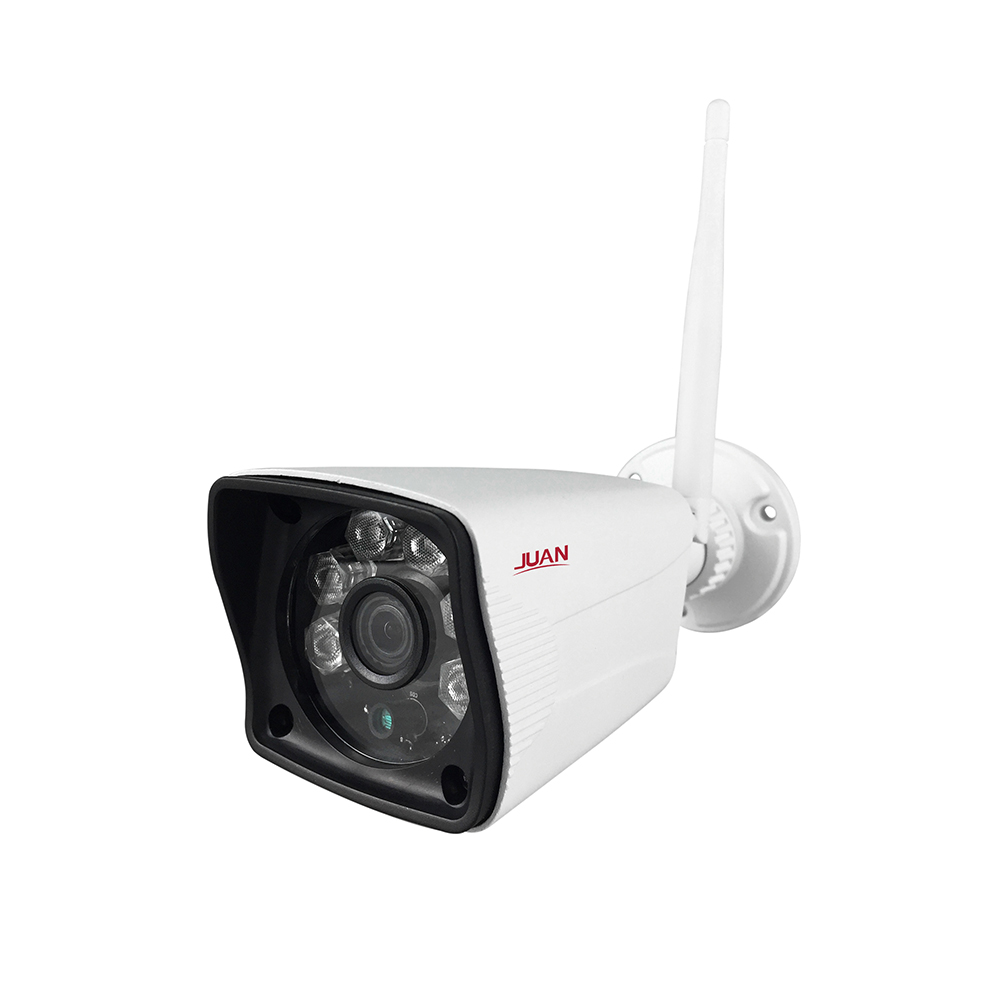

wireless IPC



item

PA3021H-WP



processor

professional industrial processor



operation system

embed linux operation system



image sensor

1/3 Progressive Scan Sensor



S/N Ratio

> 39.1 dB



video compression

standard  H.265, H.264H265+



resolution

1920 x 1080 16:9



Min illumination

Color: 0.1 Lux





B/W: 0.01 Lux



lens

4mm



OSD

Date Time & Title



white balance

Auto



Day & Night

Auto / Color / BW



3D-DNR

Auto



Mirror/Flip

On / Off



privacy masking

4 Zone Selectable



stream

dual stream1920x1080@15fps640x480@15fps



anti-lighting grade

Standard IEC61000-4-5



power input

DC12V-1A



power cocumption

6W



connector

reser button/ WIFI 802.11b/g/n



working humidity/ temperature

-10 to +50 / 30% to 80% RH



storage temperature / humidity

-20 to +60 / 20% to 90% RH



size

66*180mm







*  1080P H.265+wireless network recorder

*  in open space without itrefere transmission distance up to 800 meters

*  insert professional surveillance WIFI board, with stonger anti-interfere ability

*  WIFI matching free, plug and play

*  P2P IP PRO, fluent and fast remote access

*  support multiple alarm push( video lost /motion detection) and alarm out put(voice/email/ FTP etc.)

*  support Android/Apple cell phone or pad by LAN & WAN visit and control
