4ch H.265 Wireless IP Kit K8204-PA3020-W

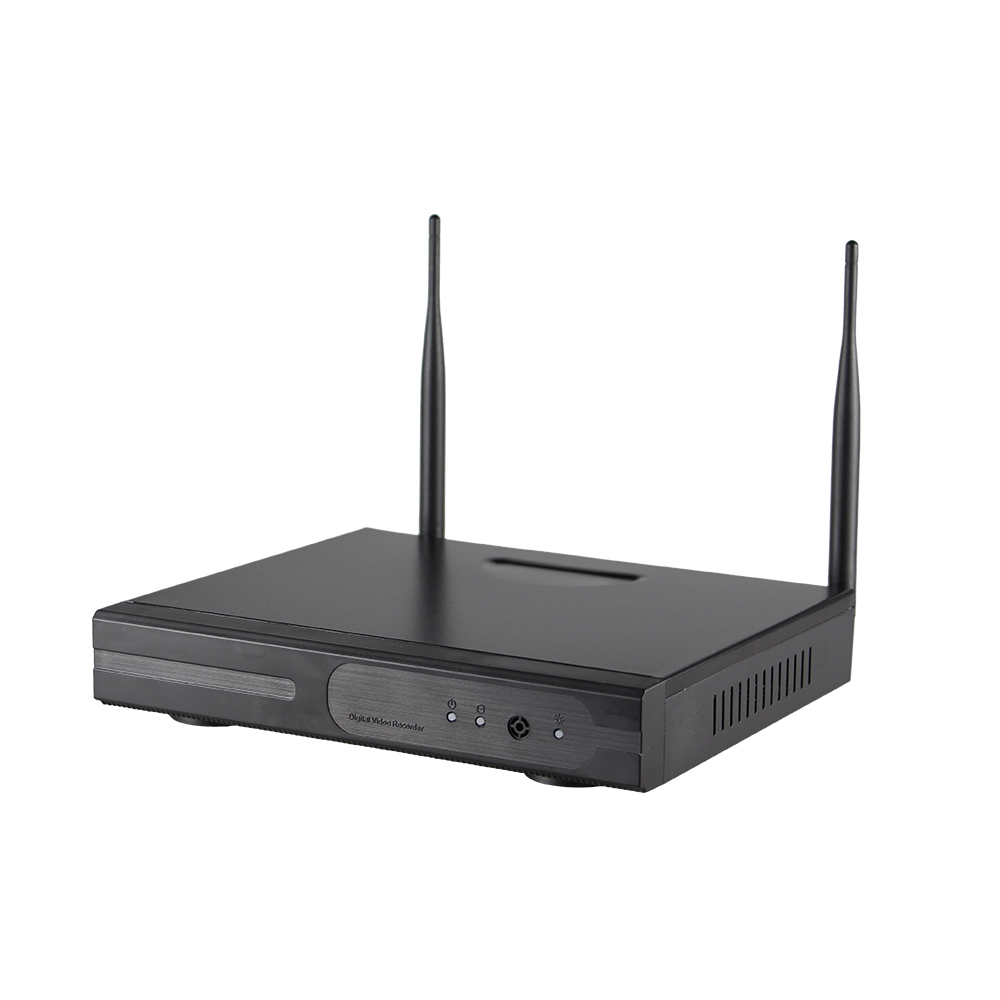

wireless NVR



Model

K8204-W



processor

professional indutrial grade processor



operating system

embedded LINUX operating system



Video imput

online vedio imput

4ch



Video/audio output

HDMI Output

1chResolution1024x7681280x1024,1366x7681440x900,1920x1080psupport audio output



VGA  Output

1chResolution1024x7681280x1024,1366x7681440x900,1920x1080p



video/audio decode

Resolution

D1/960H/720P/960P/1080P



Playback

4ch



vedio compression

standard H.265H.264



record management

record/image capture mode

manual videotiming recordmotion detection recordalarm record



Playback mode

real timenormalevent



back up

normal



Storage

type

1 SATA



Storage capacity

6TB for each HDD



out interface

Network interface

1RJ45 10M/100M self-adjustable internet port



2



USB interface

1USB 2.0



Audio interface

3.5 inch headphone jackOptional



internet management

network protocol

UPnPplug-play)、SMTPPPPoEDHCP




others

Power

DC 12V 2A



Power consumption

≤5W



working temperature

-10--55



Working humidity

10--90



Dimensionmm

258×210×42mm



weightwithout harddisk

≤1Kg

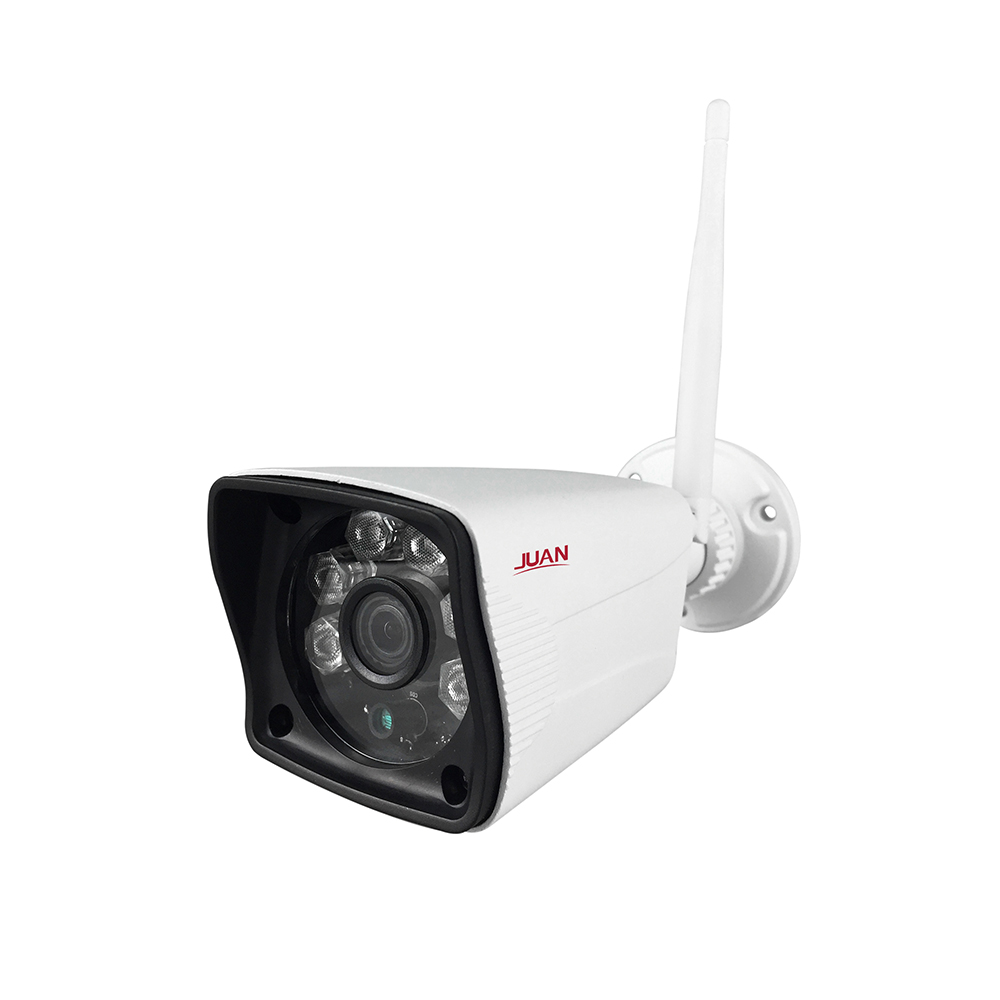

Wireless IPC



Model

PA3020-W



Resolution

2 megapixel



Sensor

1/3”CMOS



Lens

4mm/6mm



video compression

standard H.265H.264




smart stream

Dual-stream:



1920x1080@15fps



640x480@15fps



Resolution

1280x960 4:3 high definition



OSD

Date Time & Title



Minimum illumination

Color: 0.1 Lux;  B/W: 0.01 Lux



privavy masking

4 zones selecr



IRLED

3 arrey LED;IRCUT filter with audio switch



LED distance

30-40M



Interface

RJ45/WIFI 802.11b/g/n/



audio

audio tail line outputoptional



Power Input

DC12V



Power consumption

≤6W



1wifi kit all-round upgrading

2H265 series wifi kit 4ch/8ch

32mp/4mp H265+low stram

4wifi function,optimize streammore smoothly image

5H265+super low streamsave widebandsave harddisk
